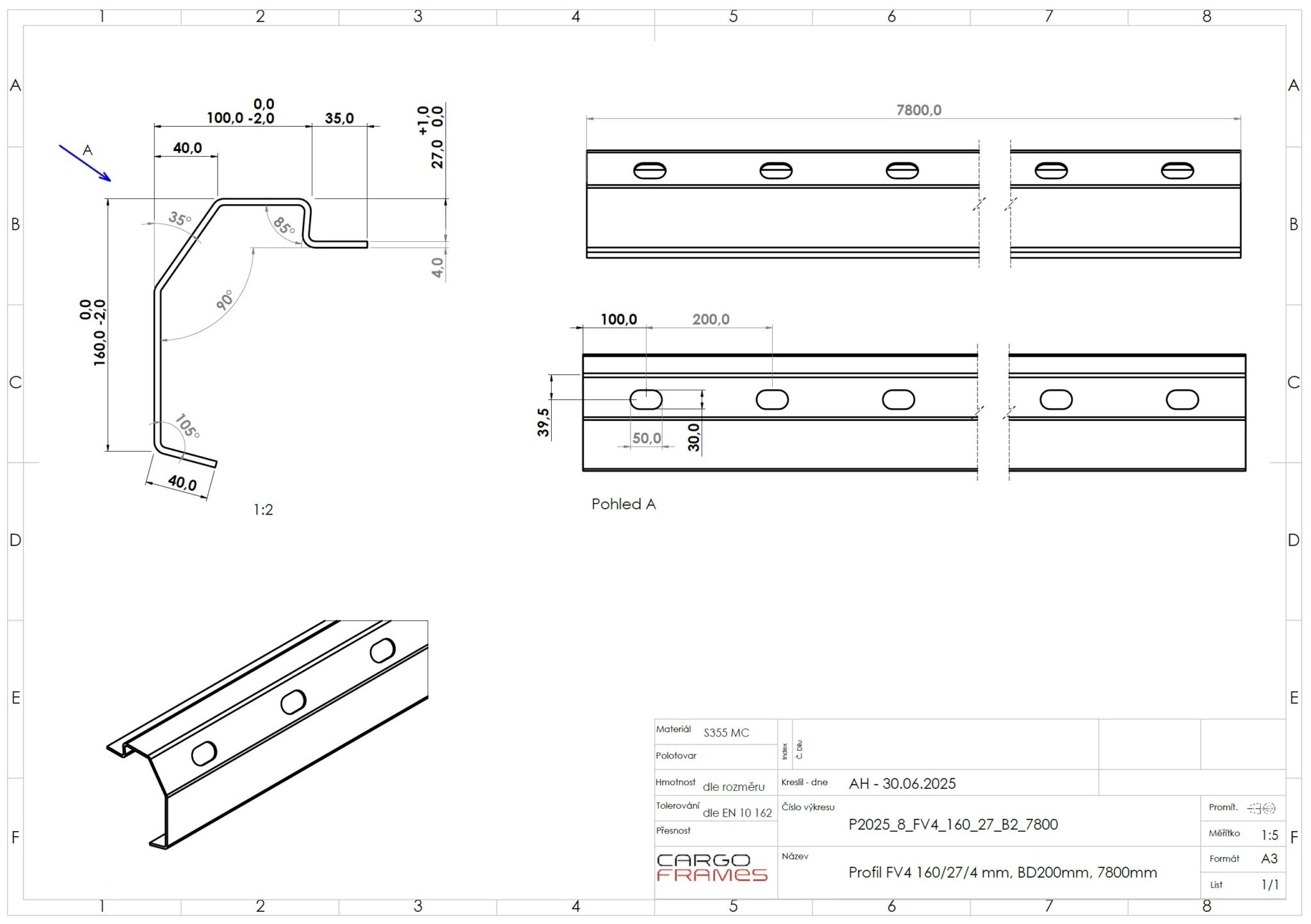

SIDE RAVE PROFILE TYPE FV

The FV-type profile has standard height 160 mm, set-off for plywood floor 21/24/27 mm and material thickness 3 mm. Other dimension variants and material thickness 4 mm are possible according to individual customer requirements. The maximum profile length is 8,000 mm. Profiles are supplied with a lateral oval hole for mounting strap hooks at a 200-mm distance. Other punching designs are possible according to individual customer requirements.
